Green Silicon Carbide Specifications
Purpose | Specification | Chemical Composition (%) | Magnetic Material Content(%)max |
Abrasives Grade | SiC min | F.C max | Fe2O3max |
grain | 12-80 | 99 | 0.20 | 0.2 | 0.0180 |
90-150 | 98.5 | 0.25 | 0.5 | 0.0150 |
180-220 | 97.5 | 0.25 | 0.7 | 0.0120 |
micro powder | 240-4000 | 96 | 0.30 | 0.8 | — |
Refractory Grade | Group Size | 0-1mm 1-3mm 3-5mm 5-8mm | 99 | 0.35 | 0.7 | — |
Fine Powder | -180mesh -200mesh -240mesh -320mesh | 98 | 0.35 | 0.7 | — |
color | green |
Hardness(mohs) | 9.15 |
Melting point(℃) | 2250 |
Maximum service temperature(℃) | 1900 |
Ture density(g/cm3) | 3.9 |
Available Sizes | GRIT | JIS | #16 #20 #24 #30 #36 #46 #54 #60 #70 #80 #90 #100 #120 #150 #180 #220 |
FEPA | F16 F20 F22 F24 F30 F36 F40 F46 F54 F60 F70 F80 F90 F100 F120 F150 F180 F220 |
Powder | JIS | #240 #280 #320 #360 #400# #500 #600 #700 #800 #1000 #1200 #1500 #2000 #2500#3000 #4000 #6000 |
FEPA | F230 F240 F280 F320 F360 F400 F500 F600 F800 F1000 F1200 F1500 |

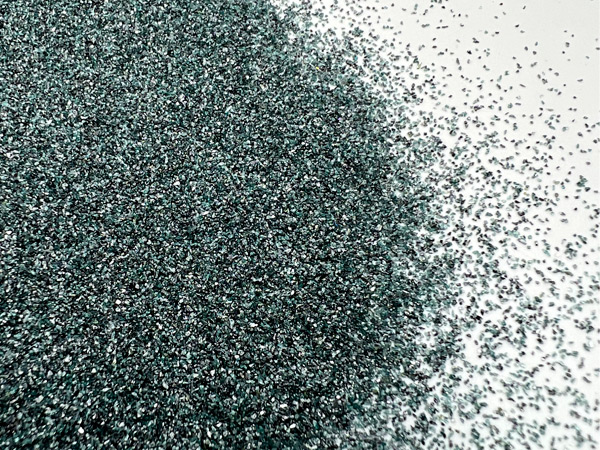

Features of Green Silicon Carbide Powder
1.High Purity: Green silicon carbide is known for its exceptional purity, typically exceeding 99%. This high level of purity ensures minimal contamination, making it ideal for applications requiring stringent material specifications. When considering green vs black silicon carbide, the green variant is often chosen for applications requiring extreme purity.
2.Superior Hardness: Green silicon carbide powder ranks just below diamond on the Mohs hardness scale, making it one of the hardest materials available. This exceptional hardness makes it highly effective for abrasive applications, including grinding, cutting, and polishing.
3.Excellent Thermal Conductivity: Green carborundum exhibits excellent thermal conductivity, which is crucial for applications involving high temperatures. Its ability to maintain structural integrity at elevated temperatures further enhances its utility in various industrial processes.
4.Chemical Stability: The chemical stability of green silicon carbide powder is another key feature. As one kind of sic powder, it is highly resistant to oxidation and corrosion, even in harsh chemical environments.
5.Versatile Particle Size: Whether fine powders for precision polishing or coarser grains for abrasive blasting, the green silicon carbide grit can be tailored to meet diverse needs.
Green Silicon Carbide Powder Applications
Green silicon carbide powder is suitable for grinding high-speed, high carbon steel
High-grade refractory materials
Photovoltaic and solar energy
