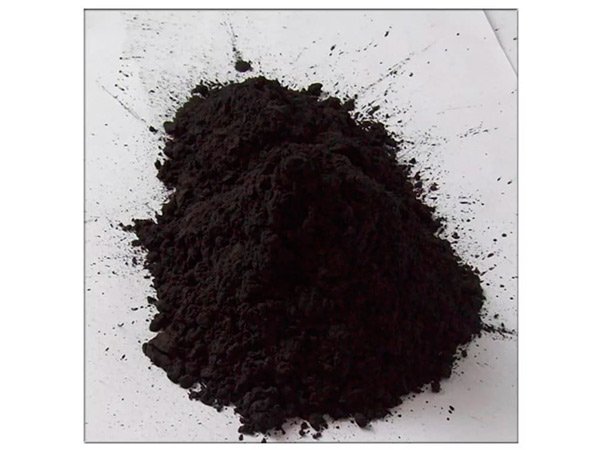

Boron carbide powder for sale is a kind of gray-black micropowder. It is an inorganic substance. The chemical form of boron carbide powder is B₄C. As one of the three hardest materials known (after diamond and cubic boron nitride), you caan find boron carbide powder uses widely in tank armor, body armor, and many other industrial applications. Its Mohs hardness is about 9.5.
Grit Size | Size(μm) | Chemical Composition | |||
B% | C% | Fe2O3% | BC% | ||
60# | 315-215 | 78-81 | 17-22 | 0.2-0.4 | 97-99 |
80# | 200-160 | ||||
100# | 160-125 | ||||
120# | 125-100 | 78-80 | 17-22 | 0.2-0.4 | 96-98 |
150# | 100-80 | ||||
180# | 80-63 | ||||
240# | 60-50 | 77-80 | 17-22 | 0.3-0.5 | 96-97 |
280# | 50-40 | ||||
320# | 40-28 | ||||
W40(360#) | 35-28 | 76-79 | 17-21 | 0.3-0.6 | 95-97 |
W28(400#) | 28-20 | ||||
W20(500#) | 20-14 | 75-79 | 17-21 | 0.4-0.8 | 94-96 |
W14(600#) | 14-10 | ||||
W10(800#) | 10-7 | 74-78 | 17-21 | 0.4-0.9 | 92-94 |
W7(1000#) | 7-5 | ||||
W5(1200#) | 5-3.5 | 74-78 | 17-21 | 0.5-0.9 | 90-93 |
W3.5(1500#) | 3.5-2.5 | ||||
-325# | <45 | 74-79 | 17-22 | <0.4 | 92-97 |
0-44μm | <45 | ||||
-200# | <90 | 74-80 | 17-22 | <0.3 | 94-97 |
-100# | <150 | ||||
-25μm | <25 | 74-79 | 17-21 | <0.3 | 92-96 |
-10μm | <10 | 74-78 | 17-21 | <0.3 | 91-95 |
60#-150# | 250-75 | 77-81 | 17-22 | <0.3 | 95-98 |
40#-120# | 315-106 | ||||
30#-60# | 355-250 | ||||
Boron carbide | 355-250 | 92-80 | 17-23 | <0.3 | 90-99 |
